    150BPH 20 Liter Automatic Filling Machines Washing Filling And Capping

    Ask Lasest Price
    Brand Name : Huaweishenda
    Model Number : CGF-150
    Certification : ISO/CE/HACCP
    Payment Terms : L/C, T/T
    Supply Ability : 10sets per month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

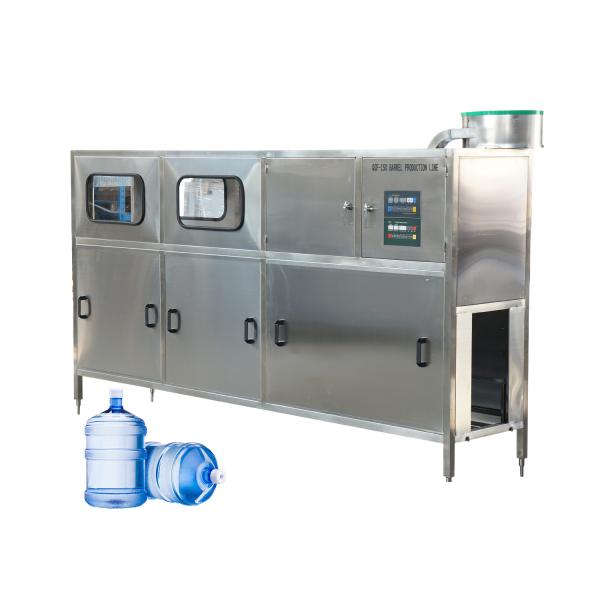

    150BPH 20 Liter Automatic Filling Machines Washing Filling And Capping

    Factory wholesale automatic pure water 150 BPH 5 gallon 20 liter water bottle washing filling capping machine

    Gallon Filling Machine

    Gallon bottle filling machines are manufactured linear or rotary by the capacity and customer’s requirements. Filling process actualized with non contact of the bottle neck. Gallon bottles which transfered to filling machine are centred by the mechanical system and no bottle no filling. Filling pump controlled by the inverter so ensuring different filling speed in different filling level.
    Project
    3- 5 Gallon Water Bottling Machine
    ModelQGF-100QGF-300QGF-450QGF-600QGF-900QGF-1200
    Capacity (BPH)1003004506009001200
    Filling Heads
    1
    2
    3
    456
    Air press(Mpa)
    0.37
    0.60.811.52.0
    Power supply1.38KW3.8 KW
    5.6KW
    7.5 KW9.75KW12 KW
    Overall dimension3700×1300×16004060×1860×16005000×1500×22005400×2600×22008500×6000×25009000×6500×2800
    Weight (KG)68015002100300035004000

    Feature:

    * Adopt non-contact quantitative filling tech, without water overflow.
    * Adopt AISI316L for part in contact with ozone water, no-dead-ends mirror polish technique, guarantee product quality.
    * Reserved interface for install 100 class clean room FFU (fan filter unit).
    * Adopt Simens PLC control, or same level brand product.
    * FESTO air cylinder, or same level brand.
    * INOXPA stainless steel filling pump, or same level brand.
    * Filling volume accuracy: within ± %0.5 lt.
